GFCI Outlet Installation in the USA
All Tech Electric technicians begin every GFCI Outlet Installation by mapping the branch circuit back to the panel and confirming that the neutral conductor remains isolated from ground except at the main bonding point. They measure line voltage under load, test for proper polarity and use a milliamp meter to simulate a five-milliamp imbalance that should cause an immediate trip. This sequence isolates whether an existing receptacle has failed internally or whether wiring upstream has developed a high-resistance connection.
Once the circuit path is verified, our technicians remove the old device and install a new GFCI receptacle rated for the measured amperage and voltage. They attach pigtails to the line and load terminals when downstream protection is required, torque the screws to manufacturer specification and recheck the test button before restoring power. Every connection is dressed so that the equipment grounding conductor remains continuous and properly bonded to the metal box. We inspect conduit runs after completing gfci outlet installation and update the All Tech Electric homepage nationwide in the USA.
Indicators That a GFCI Requires Replacement
- Reset button fails to stay engaged after multiple attempts.
- Test button produces no audible click or circuit interruption.
- Outlet shows no voltage even after the device is reset.
- Frequent trips occur with low-draw appliances in damp areas.
- Physical signs of heat discoloration appear around the faceplate.
Circuit Tracing and Measurement Steps
Our technicians first de-energize the branch at the breaker and confirm zero voltage with a non-contact tester before removing the receptacle. They then ring out each conductor with a continuity meter to locate any splices or junction boxes that may hide loose neutrals. Voltage drop is measured at the device under a known load to reveal undersized wiring or corroded terminations that reduce the effectiveness of the GFCI sensing circuit.
Grounding integrity is checked by measuring resistance between the equipment ground and the panel ground bar. Any reading above one ohm indicates a parallel path that can bypass the GFCI detection coil. Technicians also verify that the neutral is not bonded downstream, which would create a false trip every time current returns through an alternate route.
Installation Configurations for Different Locations

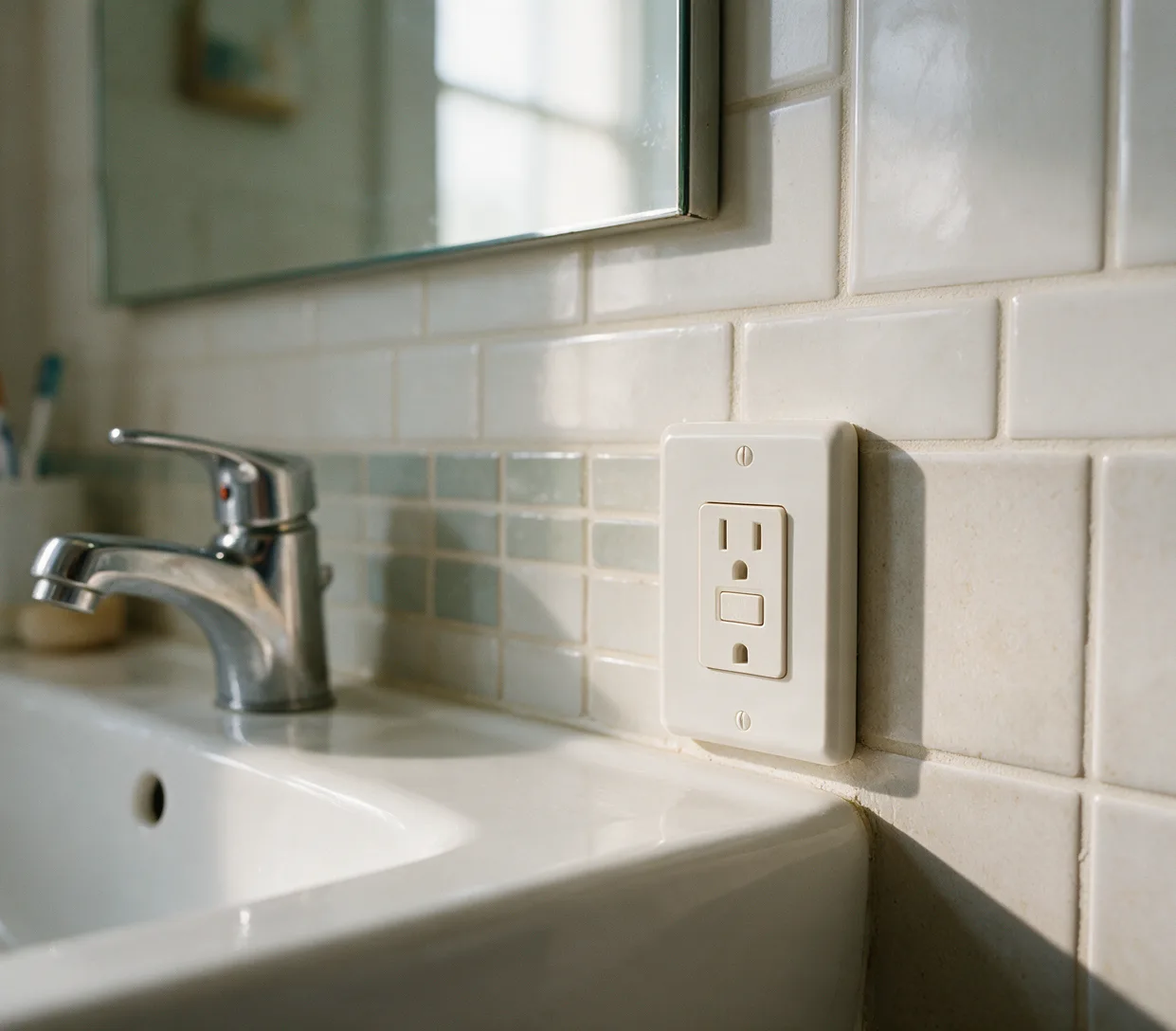

In kitchens and bathrooms where water is present, All Tech Electric installs GFCI receptacles with the line terminals connected to the supply and the load terminals feeding additional outlets that require protection. Outdoor installations use weather-resistant models with extra-duty covers rated for direct exposure. When only a single location needs protection, the device is wired as a single receptacle without load terminals to simplify future troubleshooting.
If the existing box depth is insufficient for the bulkier GFCI body, technicians replace it with a deeper metal or PVC box while maintaining the required cubic-inch volume for the conductors. They always install the pigtail method so that removal of one device does not interrupt power to others on the same circuit.
Materials Selected for Long-Term Performance
All Tech Electric selects GFCI receptacles that carry a twenty-amp rating even when installed on fifteen-amp circuits to provide headroom for motor inrush currents from refrigerators or shop vacuums. Screw terminals rather than push-in connections are used exclusively because they maintain lower resistance over years of thermal cycling. Tamper-resistant shutters are included to meet current code requirements without altering the internal sensing electronics.
Solid copper pigtails of the same gauge as the branch wiring are cut to length and secured with crimp connectors or wire nuts listed for solid-to-solid connections. Grounding clips or green screws ensure the yoke of the receptacle remains bonded even if the mounting screws loosen slightly over time.
Safe Actions a Homeowner Can Take First
Before requesting service, a homeowner can press the test button on the GFCI to confirm the device interrupts power and then press reset to restore it. Unplugging nearby loads such as hair dryers or chargers eliminates the possibility that a single faulty appliance is causing repeated trips. Visual inspection of the faceplate for cracks or burn marks can be performed safely once power is confirmed off at the breaker.
Homeowners should avoid opening the panel or attempting to replace the breaker itself. They can note which rooms lose power when the GFCI trips, providing useful information that helps All Tech Electric technicians isolate the affected circuit quickly upon arrival.
GFCI Outlet Installation questions
What causes a GFCI to trip repeatedly?
A current imbalance as small as five milliamps between the hot and neutral conductors causes the internal sensing coil to open the contacts. Moisture intrusion, damaged cord insulation or a failing appliance can create this path to ground. Technicians measure actual leakage current to determine whether the receptacle or the wiring is at fault.
Can a standard outlet be converted to GFCI protection?
Yes, by replacing the existing receptacle with a GFCI model wired to protect only that location or to feed downstream devices. The existing branch conductors remain unchanged while the new sensing circuitry monitors the circuit. Proper torque on terminals and verification of grounding continuity complete the conversion.
How is a GFCI different from a standard breaker?
A standard breaker responds only to overcurrent or short circuits at fifteen or twenty amps. A GFCI continuously compares current leaving on the hot conductor with current returning on the neutral and trips at five milliamps regardless of total load. This protects people rather than equipment from ground faults.
What should be checked before replacing a GFCI?
Voltage at the line terminals, continuity of the equipment ground, absence of downstream neutral-to-ground bonds and correct polarity must all be verified. These measurements prevent replacement of a device when the actual fault lies in wiring or a connected load.
